Large Dimension Storz Safety Latch type Hose Coupling

LDHC Safety storz coupling-ICM Industries

Part One: Introduction:
Large dimension hose couplings and fittings are very popular in American market in the past few years. Mainly
is due to the blooming of shale oil business. These large dimension couplings not only used in Oil field, but is
multi-purpose used. Such as in water fracturing process, agriculture, firefighting, emergency repairs & water supplies,
temporary installations and Bypasses

Part Two: LDHC-Storz safety latch type coupling Spec:
1. Body material: 6061-T6 Aluminum,
2. Bolts and Nuts: Galvanized steel 12.9 grade
3. Manufacture method: Mold Forged
4. Surface Treatment: Hard Anodized coated
5. Bolts and nuts number: 6” 8” and 10”: 12pc, 12” 16pc
6. Rated pressure: high strength forged heads and forged aluminum locks to exceed lock shear test of 300lbs
6” WP: 200PSI, BP: 600PSI
8” WP:215PSI, BP:645PSI
10” WP:200PSI, BP:600PSI
12” WP:150PSI, BP:450PSI
7. Temperature: -50℃ to 80℃
8. Scope of hose wall thickness: 3.5-6mm
9. Connect method: with standard Storz coupling
10. Size available: 6”, 8” ,10”, 12”
11. Clamp pieces: 6”-10”:3pc, 12”: 4pc
12. OD of LDHC shank nipple: 6” 153.5mm, 8” 203.5mm, 10” 254mm, 12” 304mm
13. Unite Weight: 6” 10kg, 8” 18kg, 10” 25kg, 12” 32kg
Note: If the actual hose ID is smaller than the normal hose size, hose expander is recommended to assistant
assembling the hose

Part Three: LDHC-Storz safety latch type coupling Features:
a. Full Bore design to minimize friction loss and increase flow
b. Sexless design to facilitate assembly and connection
c. Can be used with PVC/Nitrile or PU lay-flat hose
d. Light-weight aluminum design
e. Hard-coat anodized for abrasion resistance, anodized to Type II and Type III standards
f. Simple, low maintenance clamping mechanism
g. Rugged drag coupling is designed for use on rough terrain Field-proven results for over 15 years in the
agricultural industry
h. Truly re-attachable fitting allows for easy fix in the field

Part Four: LDHC-Storz safety latch type coupling Applications:
• Oil industry applications: Onshore/ offshore oil or gas exploration
• Dewatering & drainage: Suction and delivery lines for site dewatering
• Bypass for water & sewer lines, Dredging
• Water transfer (fresh & waste water)
• Mining & tunneling
• Civil engineering projects,
• Emergency water supply, such as flood disaster and fire control
• Sludge handling
• Road construction
• Irrigation systems
• Well point &Pumps & pumping stations

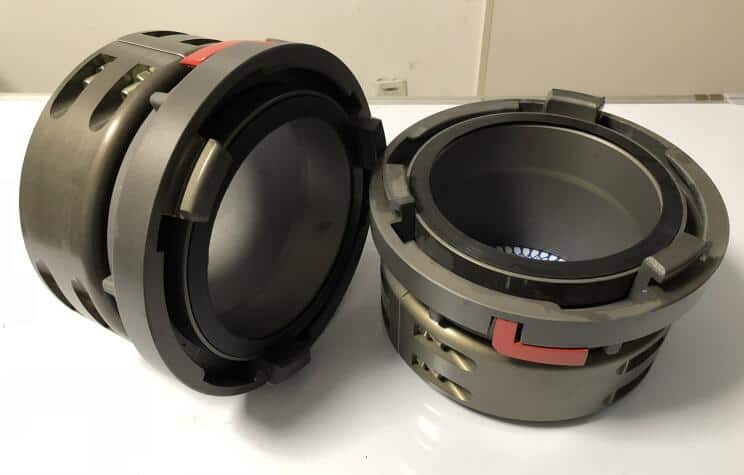

Part Five: Photos in assembly
