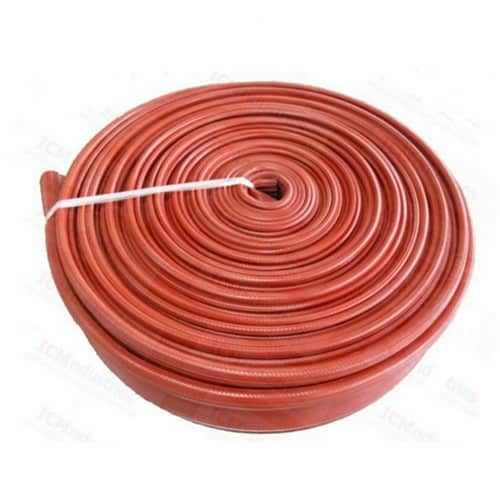

NBR/PVC blend rubber layfalt fire hose
1) Description: The NBR/PVC Blend layflat fire hose is the no. 1 choice forfirefighters worldwide.
2) Hose features: tough durable andvery abrasion resistant, resistance to oil, fuel and a wide range of chemicals,resistance to heat, UV and ozone, has excellent adhesion between rubber andtextile, no cleaning and drying is required and easy to repair.
3) Applications include: refineries, chemical industry,military, fire brigades, marine and offshore installations, fire hose for usageunder tough conditions.
4) Construction – Textile Reinforcement:
Warp – high tenacity polyester. Weft – polyamide;
circular woven. Special weaving design to minimizepressure loss.
Totally embedded in the rubber compound providingexcellent protection against mechanical damage.
5) Construction – Lining/Cover: Special high gradeformulated NBR/PVC compound extruded through the weave in a unique one stepproduction process. Inside is very smooth for minimum friction loss.
Outside is ribbed for good abrasion resistance andprotection against contact heat.
6) Standard Lengths: 15, 20 ,30M (50, 66, 100 ft), otherlengths on request.
7) Standard Color: Red. Yellow, Blue, black also available.
8) Service Temperature: From -20°C up to +100°C (from -4°F up to 212°F),based on water.
9) Size: 11-4”-12”
10) Working Pressure:
1-1/4”-4-1/2”: 14/15/17/21bar
5”, 5-1/2” and 6”: 8/10/14bar
7-1/2”-8” : 8/10bar
10” and 12”:8bar
