New Product: API Bottom loading adaptor–API RP1004

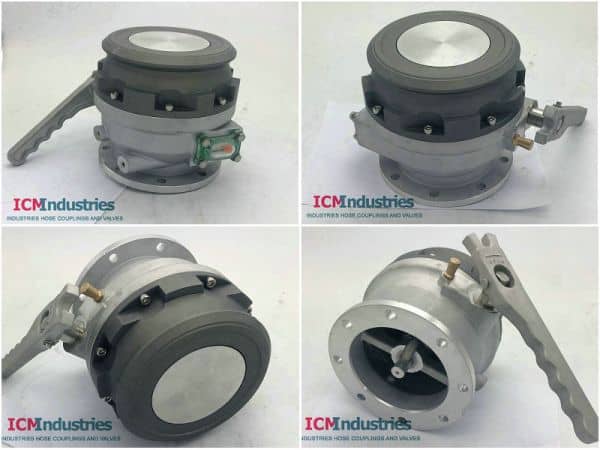

API Bottom Load Valve

ICM API Tank bottom loading adaptors are interchangeable with other products manufactured to standard API RP 1004. They are used at the side of tank bottom, which are used for loading or off-loading tank liquid.

Technical Details
Size: 4 inch (DN100)
Material: Gravity casting Aluminum alloy through T6 treatment
Seals: Viton/NBR, Other material on request
Working Pressure: 10 Bar
Test Pressure: 15 Bar
End Connections: TTMA Flange

Features:
• Aluminum body through T6 heat treated for improving strength and hardness.
• Complies to API RP1004 – compatible with all API couplers.
• Ease of maintenance for reduced downtime.
• The stainless steel shaft, spring and valve rod ensure the durability.
•       Viton seals are standard for compatibility with fuels and additives
•       Sight glass for observing the flow
• High strength, transparent nylon material sight glass to visually check for retained product available.
• TTMA Flange is gramophone finish for improved sealing.
• Minimum pressure drop through a 100mm bore.
• Nose cone through hard anodized improve the wear resistance efficiently and life time.
• Two-position in the handle is convenient for adjusting flow control.
• Lightweight design – 4.6kg
